FLANGES

FLANGES
FLANGES
Send Inquiry
Product Code : 15
Product Description

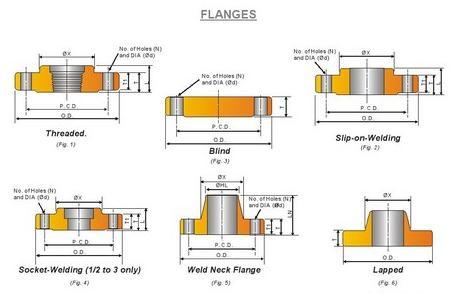

6 FLANGES. (THREADED, SLIP-ON WELDING, BLIND, SOCKET WELDING, LAPPED & WELDING NECK)



(6-1.) CLASS 150 FLANGES (AS PER ANSI B16.5)

SIZE

O.D

T

DIA X

P. C.D

N

DIA d

L

LN

DIA

HL

1/2

3.50

0.44

1.19

2.38

4

0.62

0.62

1.88

0.84

3/4

3.88

0.50

1.50

2.75

4

0.62

0.62

2.06

1.05

1

4.25

0.56

1.94

3.12

4

0.62

0.69

2.19

1.32

1 1/4

4.62

0.62

2.31

3.50

4

0.62

0.81

2.25

1.66

1 1/2

5.00

0.69

2.56

3.88

4

0.62

0.88

2.44

1.90

2

6.00

0.75

3.06

4.75

4

0.75

1.00

2.50

2.38

2 1/2

7.00

0.88

3.56

5.50

4

0.75

1.12

2.75

2.88

3

7.50

0.94

4.25

6.00

4

0.75

1.19

2.75

3.50

3 1/2

8.50

0.94

4.81

7.00

8

0.75

1.25

2.81

4.00

4

9.00

0.94

5.31

7.50

8

0.75

1.31

3.00

4.50

5

10.00

0.94

6.44

8.50

8

0.88

1.44

3.50

5.56

6

11.00

1.00

7.56

9.50

8

0.88

1.56

3.50

6.63

8

13.50

1.12

9.69

11.75

8

0.88

1.75

4.00

8.63

10

16.00

1.19

12.00

14.25

12

1.00

1.94

4.00

10.75

12

19.00

1.25

14.38

17.00

12

1.00

2.19

4.50

12.75

14

21.00

1.38

15.75

18.75

12

1.12

2.25

5.00

14.00

16

23.50

1.44

18.00

21.25

16

1.12

2.50

5.00

16.00

18

25.00

1.56

19.88

22.75

16

1.25

2.69

5.50

18.00

20

27.50

1.69

22.00

25.00

20

1.25

2.88

5.69

20.00

24

32.00

1.88

26.12

29.50

20

1.38

3.25

6.00

24.00
