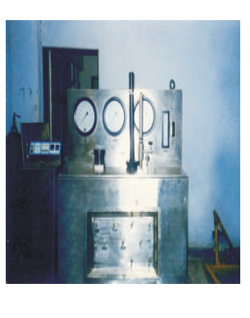

There are four sections of test bench as follows:
1. Gauge Section
2. Chamber Section
3. Control Valves Section and
4. Inlet Section
Pressure Chamber (Ager)
This device is a water filled chamber for maximum 5000 psi pressure. The Gas Lift Valves are inserted into the chamberand subjected to a predetermined external pressure for some length of time and number of cycles.
This equipment is used to set the opening or closing pressure of nitrogen charged valves. There are two types in use: Typical sleeve tester (M-010) and typical encapsulated stem and seat leakage tester (M-011), those are arranged in our test bench very conveniently.
This is a water filled container where several gas lift valves are immersed in the water to bring them to a predetermined controlled temperature. Since most gas
